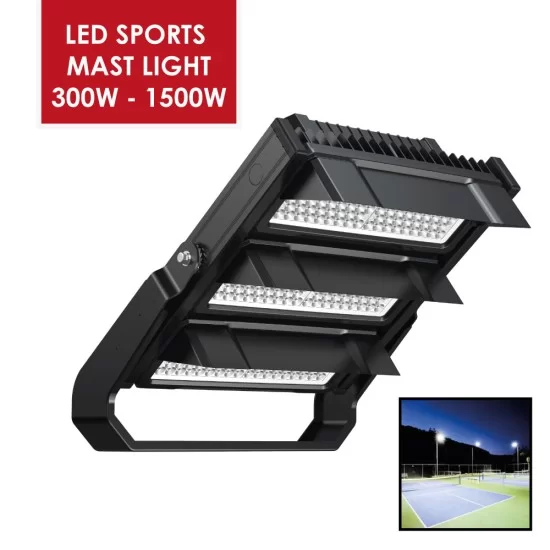

1200W Asymmetric LED Flood Sports Area Light for Tennis Court, Football, Rugby Pitch, Horse Menage, Golf, Stadium, Arena

New Free Lighting Design -20 %

1200W Asymmetric LED Flood Sports Area Light for Tennis Court, Football, Rugby Pitch, Horse Menage, Golf, Stadium, Arena

Stock: In Stock - Same Day Dispatch
Model: LSTSFL-1200

Downloads (3)

Based on 0 reviews. - Write a review

£1,028.65

£1,289.00

Available Options

Add on

Qty

Add to Cart

Express Checkout Ask Question

PRODUCT INFORMATION
LED Type	Philips Lumileds SMD LEDs
Warranty	5 Year
Part L Compliant	Yes

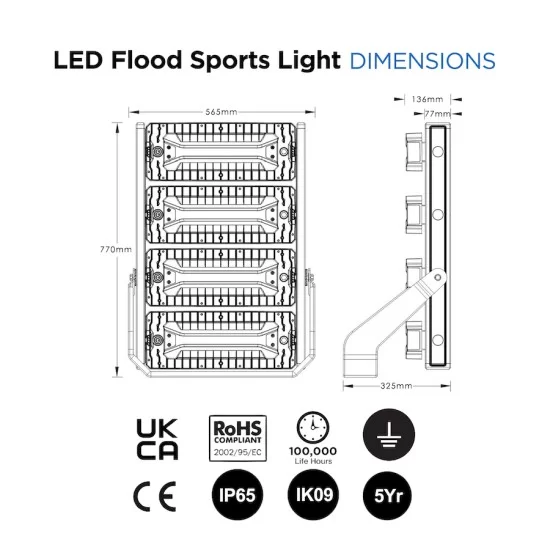

Dimensions	770mm x 565mm x 325mm
Weight	24kg
Windage	0.43m²
Equivalent to	1kw SON
TECHNICAL SPECIFICATIONS
Power Consumption	1200W
Input Voltage	90-305V AC
Power Factor	>0.9
Operating Temperature	-25°C to 45°C
L70 Rated Lifetime	+100,000hours
Ingress Protection	IP66
LUMEN PERFORMANCE
Luminous Efficiency	150lm/W
Beam Angle	Symmetric 25˚ X 25˚ / 45˚ X 45˚
CRI (Colour Rendering Index)	>80Ra
Lumen Output	180,000lm
AVAILABLE OPTIONS
Colour Temperature	Natural White 4000K
3-Hour Emergency Version	No
Built-in Microwave Occupancy Detector	No
1-10V Dimmable	Available Option
DALI Dimmable	Available Option

1200W Asymmetric LED Flood Sports Area Light for Tennis Court, Football, Rugby Pitch, Horse Menage, Golf, Stadium, Arena

LED Series Heavy Duty Flood Lighting - Stadium / High-Mast Lighting - 900W (135,000lm) - IP65 - Philips Lumileds® LEDs (770mm x 565mm x 325mm) - NW (4000K)

Other benefits include minimised attraction to nocturnal wildlife due to non ultraviolet light, high light output even in cold temperatures and a range of lumen packages 14,000-220,000lm to suit different environments. Ideal for projects such as sports pitches, tennis courts, horse arenas/menages and industrial applications. The unit features a choice of either an adjustable mounting bracket.

Click here to request your FREE Lighting Design / Lux Calculation in 24 Hours

Name: 1200W Asymmetric LED Flood Sports Area Light for Tennis Court, Football, Rugby Pitch, Horse Menage, Golf, Stadium, Arena
Brand: The LED Store
Price: 1255.66 USD
Availability: InStock

At The LED Store we realise how difficult it is when deciding on the correct lighting & layout to get the required light levels. Which is why we offer a free, no quibble lighting design service for commercial & industrial projects (apologies we are unable to design domestic/home/led profile schemes)

What we require

All you have to supply drawings in .pdf or .dwg format (PLEASE ENSURE THE MOUNT HEIGHT IS CLEARLY MARKED/NOTED). As standard, we will design to CIBSE industry standard guidelines in terms of lux levels, If your project has been a specific lux level, please let us know and we will happily work towards that. Please ensure if multiple areas are on the drawing that the area to be designed dis clearly marked, as well as if existing locations are to be followed ie. using existing lamp posts or existing lighting circuits, please ensure these are clearly marked.

Dont have drawings?

We appreciate detailed architectural drawings are not always available, and in certain circumstances may be able to work from a neat & detailed hand drawn sketch complete with FULL MEASUREMENTS, ie. length, width & height of the site in question. NOTE - we are unable to work from photos, google maps screen shots or other as they lack any detailed measurement.

We have included some standard templates below of our most popular lighting designs should you wish to download, print and mark up the dimensions & layout of your particular site. Please return this using the email above.

Generic Free Lighting Design Lux Level Calculation Scheme Form

Warehouse Factory Workshop Industrial Unit High Bay Lighting Design Lux Level Calculation Scheme Form

Tennis Court Lighting Sports Pitch Lighting Design Lux Level Calculation Scheme Template

Horse Menage Riding Arena Equestrian Training Lighting Design Lux Level Calculation Scheme Template

Football Pitch Training Pitch Sports Pitch Lighting Design Lux Level Calculation Scheme Template

Rugby Pitch Training Pitch Sports Pitch Lighting Design Lux Level Calculation Scheme Template

Road Drive Driveway Lane Motorway Lighting Design Lux Level Calculation Scheme Form
